Raimondi Large Format
SKU: TCWBPLUSMK3

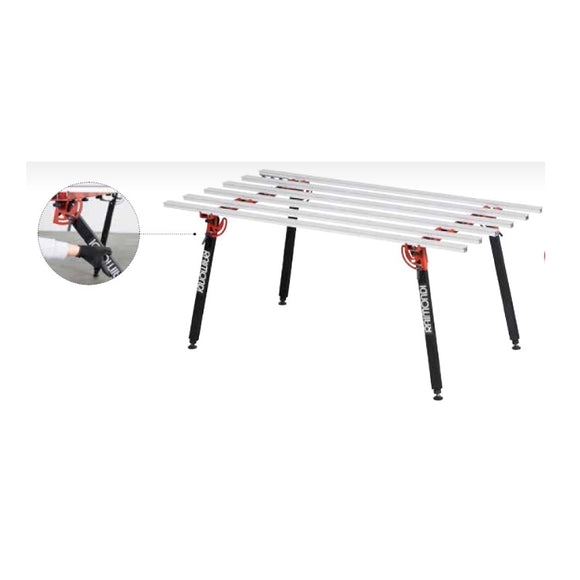

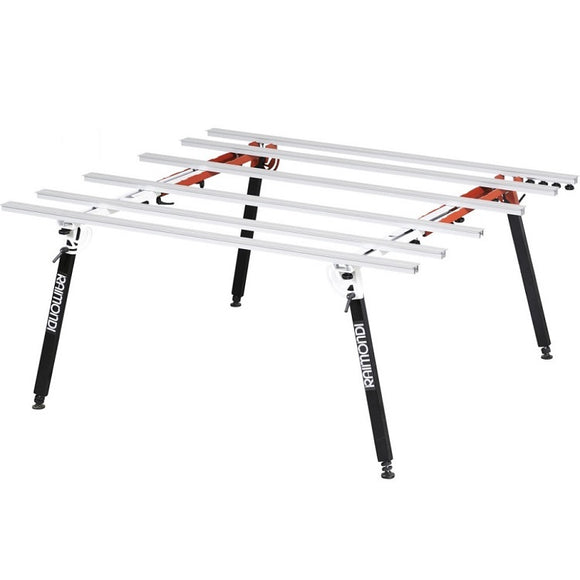

- BM 180 PLUS MKIII is a variable width table designed to be the perfect workstation for large format tiles up to 5.3’ and to be easy to transport;
- With few simple movements, the width of the worktop can vary from a minimum of 3.3’ to a maximum of 5’ with intermediate steps;
- In order to obtain an optimal worktop for any chosen width, the aluminum profiles are easily movable;
- When changing the width of the table the legs move as well, therefore they always maintain the optimal position to guarantee the maximum stability and strength of the bench at any chosen width;
- Stable and robust thanks to the steel structure, the proportions, and dimensions of the legs and crossbars as well as the effective leg clamping system;
- The length of the top is 5.9’, extendable up to 9.3’ with an extension (accessory). Connect two tables together to obtain a worktop of 11.8’ in length (and variable width from 3.3’ to 5’. This feature makes the BM180 PLUS the perfect workstation for slabs of any size;

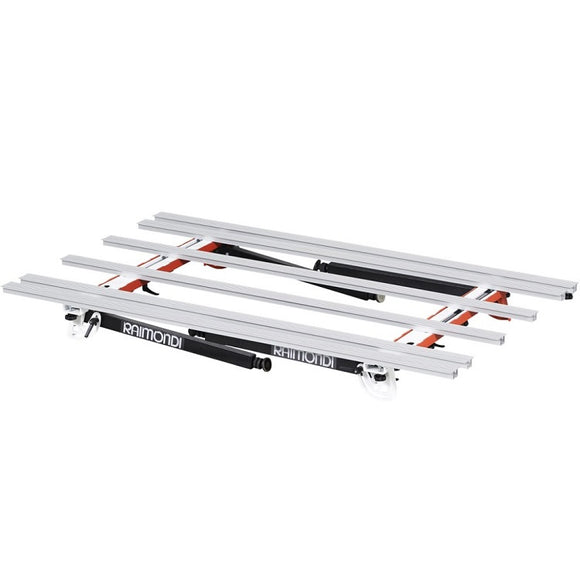

- The leg closing system allows a very quick and easy closing of the legs;
- Being the anodized aluminum profiles (which make up the worktop) spaced and movable, it is possible to perform cuts with an angle grinder and diamond blade without damaging them. Moreover, the special tile-support-cylinders (available as an accessory) create a gap between the tile and the worktop allowing to perform cuts with angle grinders in every direction without damaging the bench;
- It is possible to eventually add extra aluminum profiles (accessories);
- The height of the workbench from the ground is adjustable from 80 to 86 cm thanks to the adjustable feet;
- Double ring-nut feet: by rotating the lower ring-nut you adjust the height (no tool needed), by tightening the upper ring-nut you lock the foot in the desired position;
- Maximum load capacity (single table): 331 lbs;
- Wide range of accessories are available Raimondi Lateral Tilting Work Bench Extenstion, Raimondi Stand Alone Tile Clamps, Raimondi Support Cylinders (20), Raimondi Work Bench Wheels (Pair), and Raimondi Side Profile for Scoring and Cuts.
