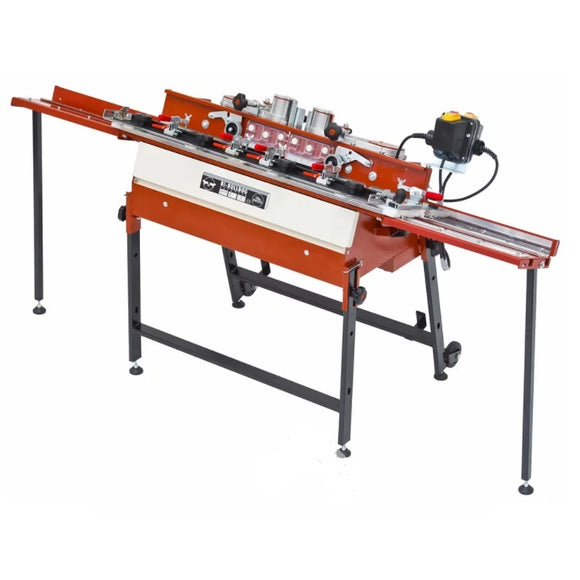

Raimondi Bulldog Profiling Machine Dual Motor

Raimondi SKU: BD2WD

Free Shipping This Item Only

$6,100.00

Raimondi Bulldog Profiling Machine Dual Motor profiles, bevels, and finished edges on porcelain, ceramics, glass-tile, stone, marble, granite, and more for tiling. Wheels are sold separately.

  • Raimondi Bulldog Profiling Machine with Dual-Head Bullnose.
  • The gear ratio of the motor to the wheel is 1: 1.6
  • Drive belt type poly V
  • Motor 1.5 HP • Motor 3,660 RPM
  • Wheel performs 5,370 RPM
  • Heavy duty water pumps for blade cooling
  • Full bullnose and beveling. •
  • Create 1/2 bullnose
  • Full bullnose
  • 45° bevel
  • Works on marble, granite, porcelain, single and double-fired.
  • Three levels of finish: rough | finished | polished
  • The maximum length of shaping is 80cm (31.5")
  • Minimum tile width 4cm (1.5")
  • Maximum tile width 60cm (23 5/8")
  • Maximum depth shaping/radius half bullnose: 30mm (1 3/16")
  • Maximum depth of shaping full bullnose: 22mm (7/8")
